How to Wire 4-Ohm Speakers: A Complete Guide

Introduction

Setting up a car or home audio system often involves understanding speaker impedance, including the widely used 4-ohm speakers. Wiring these correctly ensures your system performs efficiently without overloading your equipment. In this guide, we’ll explain how to wire 4-ohm speakers, covering essential configurations, wire gauges, and tips to help you create a robust audio setup.

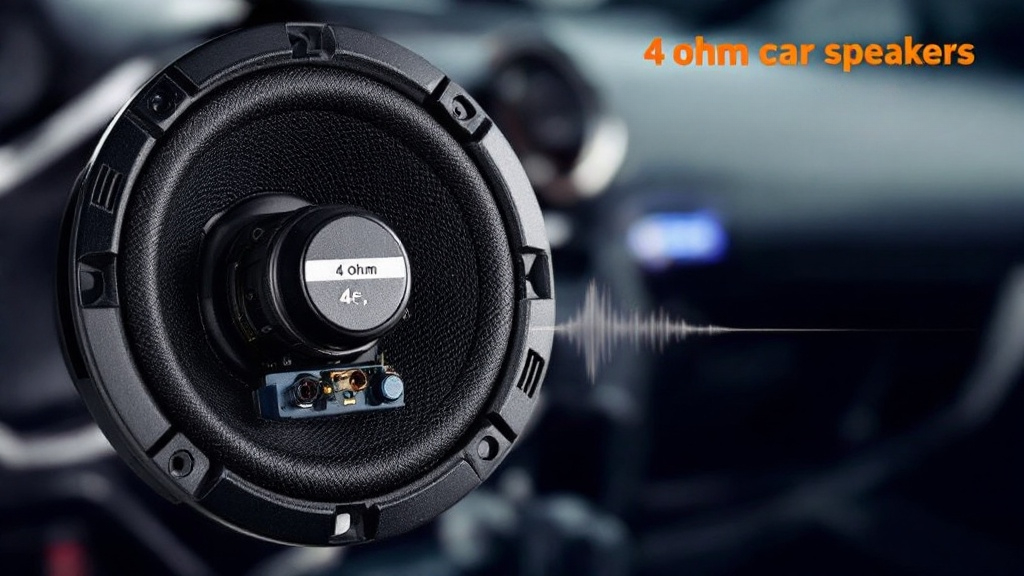

What Are 4-Ohm Speakers?

The “ohm” refers to impedance, which measures a speaker’s resistance to electrical current. A 4-ohm speaker balances power draw and compatibility, making it a popular choice for car audio systems and high-performance home setups.

• Moderate Power Demand: 4-ohm speakers require more power than higher-impedance options (e.g., 8-ohm speakers) but less than 2-ohm models.
• Versatile Compatibility: These speakers are easier to pair with most amplifiers, making them ideal for balanced systems.

Wiring Configurations for 4-Ohm Speakers

You can wire 4-ohm speakers in:

1. Series Wiring
2. Parallel Wiring

Each configuration impacts the total impedance and system performance.

1. Series Wiring

In a series configuration, the total impedance increases, which reduces the load on the amplifier.

Steps:

1. Connect the positive terminal of Speaker 1 to the amplifier’s positive output.
2. Connect the negative terminal of Speaker 1 to the positive terminal of Speaker 2.
3. Connect the negative terminal of Speaker 2 to the amplifier’s negative output.

Resulting Impedance:

For two 4-ohm speakers wired in series, the total impedance becomes 8 ohms (4 + 4 = 8).

Advantages:

• Safer for amplifiers with higher impedance requirements.
• Reduces the risk of overheating or equipment failure.

2. Parallel Wiring

In a parallel configuration, the total impedance decreases, maximizing the power delivered to the speakers.

Steps:

1. Connect the positive terminals of both speakers to the amplifier’s positive output.
2. Connect the negative terminals of both speakers to the amplifier’s negative output.

Resulting Impedance:

For two 4-ohm speakers wired in parallel, the total impedance becomes 2 ohms (calculated as $1 / (1/4 + 1/4) = 2$).

Advantages:

• Louder sound due to lower impedance.
• Ideal for amplifiers stable at lower impedances.

Caution:

Ensure your amplifier can handle a 2-ohm load. Using an amp that isn’t stable at lower impedance can result in overheating or damage.

Choosing the Right Wiring Configuration

1. Check Amplifier Specifications: Determine your amplifier’s minimum impedance rating.
2. Match System Goals:
   • For louder output, use parallel wiring (if your amp supports a 2-ohm load).
   • For safer operation and compatibility, opt for series wiring.

Understanding Wire Gauge for 4-Ohm Speakers

Wire gauge is critical to maintaining signal quality and ensuring efficient power delivery.

• For most 4-ohm speakers, 16-gauge wire works well for short runs.
• 14-gauge wire or 12-gauge wires are recommended for longer runs or high-power systems.
• 10-gauge wires are ideal for demanding setups with significant power requirements.

While thinner wires like 18-gauge wire or 20-gauge wire may work for low-power setups, they can cause performance issues with higher-power systems. Copper-Clad Aluminum (CCA) wires, offer an affordable, reliable option for most applications.

Advanced Wiring Techniques

In complex systems with multiple 4-ohm speakers or subwoofers, you can use combined series-parallel wiring to achieve a balanced total impedance. For example:

• Four 4-ohm speakers wired in a series-parallel configuration yield a total impedance of 4 ohms.
• Subwoofers with dual voice coils can be wired in series or parallel to match the amplifier's impedance requirements.

Tips for Wiring 4-Ohm Speakers

• Use Proper Polarity: Maintain consistent positive-to-positive and negative-to-negative connections to prevent phase cancellation.
• Test Connections: Use a multimeter to verify the total impedance before powering on your system.
• Secure Wiring: Use crimp connectors or soldered joints with heat shrink tubing for a stable and professional finish.
• Double-Check Compatibility: Ensure your amplifier matches the total impedance and wattage of your speakers.

Conclusion

Wiring 4-ohm speakers is simple when you understand the principles of series and parallel configurations. Choosing the correct wiring method, wire gauge, and amplifier compatibility ensures a system that delivers clean, powerful sound without risking equipment damage.
