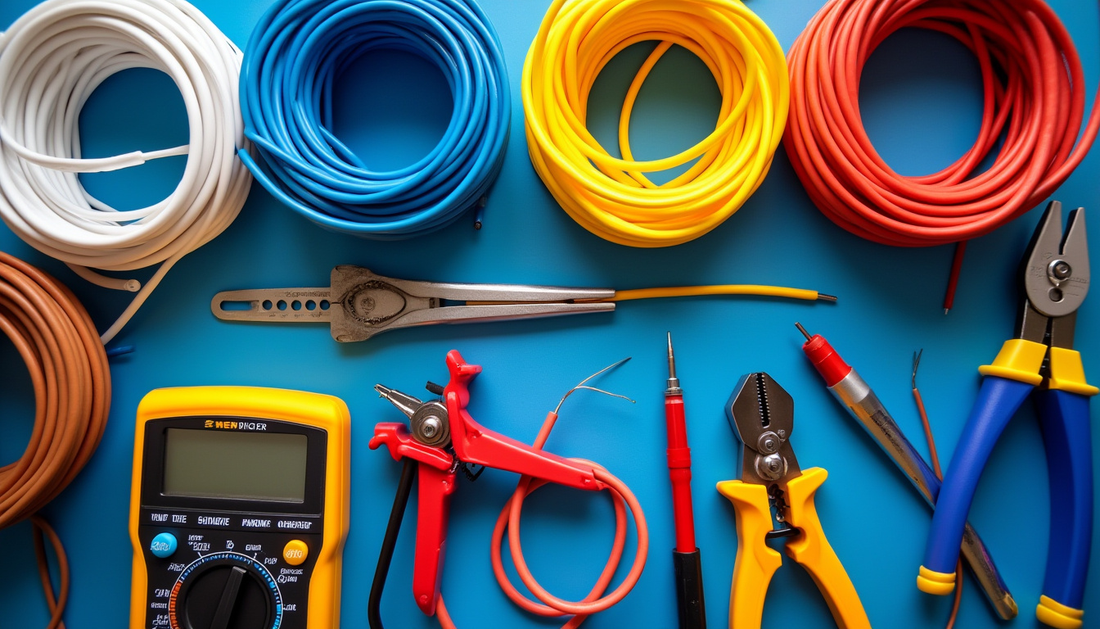

An image of rolled wires with other electrical tools.

Understanding the Relationship Between Wire Gauge, Amperage, and Voltage

Introduction

Whether you're working on a home renovation, installing a car audio system, or tackling any other electrical project, understanding the relationship between wire gauge, amperage, and voltage is crucial for ensuring safety and efficiency. Choosing the wrong wire can lead to overheating, voltage drops, and even potential electrical hazards, putting both your equipment and property at risk. This comprehensive guide will explore how wire gauge, amperage, and voltage interact, offering you the knowledge to make the best decisions for your electrical needs.

A set of electrical tools and rolls of wire.

What is Wire Gauge?

Wire gauge refers to the thickness or diameter of the wire, which plays a critical role in determining how much current a wire can carry safely. The American Wire Gauge (AWG) system is the most commonly used system for categorizing wire sizes. This system is counterintuitive: the smaller the number, the thicker the wire. For example, a 10-gauge wire is thicker and can handle more current than a 14-gauge wire.

A thicker wire has less resistance to the flow of electricity, which means it can safely carry more amperage (electric current) over long distances without causing significant voltage drop. On the other hand, thinner wires are used for low-power applications where minimal current flows through the circuit.

What is Amperage?

Amperage (measured in amps) refers to the amount of electric current flowing through a circuit. The higher the amperage, the more electrical current is being drawn. Every electrical device or appliance has a certain amperage requirement based on how much current it needs to operate effectively.

Understanding the amperage of a device or circuit is vital because each wire gauge is rated to handle a specific amount of current. If a wire is too thin to handle the required amperage, it will overheat, which can lead to insulation failure, circuit damage, and even fire hazards.

What is Voltage?

Voltage (measured in volts) refers to the electrical potential difference between two points in a circuit. It represents the force that pushes the electrical current through the wire. Higher voltage systems push current more efficiently, but voltage itself does not directly determine the wire size.

However, the combination of voltage and amperage determines how much electrical power is delivered to a device. Higher voltage systems can require less current to deliver the same power, meaning they can use thinner wires. Conversely, low-voltage systems may require higher amperage to deliver sufficient power, necessitating thicker wires.

6 spools of wire

The Relationship Between Wire Gauge, Amperage, and Voltage

The relationship between wire gauge, amperage, and voltage determines the efficiency, safety, and functionality of your electrical system. These three factors are interconnected, and a balance must be struck to ensure that electricity flows properly and safely through your wires.

1. Amperage Limits by Wire Gauge

Each wire gauge is designed to carry a specific maximum amperage. If a wire is undersized for the amperage it carries, it will overheat. This overheating can cause the insulation around the wire to degrade, leading to short circuits or electrical fires.

For example:

  • A 10-gauge wire can handle up to 30 amps, making it ideal for high-powered appliances.
  • A 14-gauge wire is only suitable for up to 15 amps, making it more appropriate for light-duty applications like lighting circuits.

2. Voltage and Distance Considerations

Voltage drop is another critical factor in wire gauge selection, especially for longer wire runs. Voltage drop occurs when the voltage decreases as it travels through the wire due to the resistance of the conductor. The longer the distance, the more significant the voltage drop. Thicker wires (lower AWG numbers) are more efficient at minimizing voltage drop over long distances.

For example:

  • Running a 120-volt system over a long distance, such as 100 feet or more, with a 12-gauge wire will cause less voltage drop than using a 14-gauge wire.

When working with long wire runs, it’s essential to choose a thicker wire gauge to maintain adequate voltage at the end of the run and prevent performance issues or potential damage to electrical components.

3. Matching Wire Gauge to Amperage and Voltage

When selecting wire gauge, you need to account for both the amperage and the voltage of the circuit. A higher amperage circuit requires a thicker wire to prevent overheating. Additionally, if the wire run is long, a thicker wire may be needed to reduce voltage drop and ensure stable performance.

For example:

  • A 20-amp circuit requires a 12-gauge wire for short runs, but if the wire run is over 100 feet, using a 10-gauge wire might be necessary to prevent significant voltage drop.

An image of a person looking at the wire gauge chart

Key Considerations for Wire Gauge Selection

When planning any electrical project, here are key factors to keep in mind:

  1. Amperage Rating: Ensure that the wire gauge you select is rated for the expected amperage. Overloading a wire with too much current can lead to overheating and fire hazards.
  2. Distance: For long wire runs, always account for voltage drop. Using a thicker wire will ensure consistent performance over greater distances.
  3. Safety Standards: Follow electrical codes and regulations to ensure safety and compliance with standards.

    Common Mistakes to Avoid

    Even seasoned DIYers can make mistakes when selecting wire gauge. Here are some common pitfalls to watch out for:

    • Using Undersized Wire for High Amperage: This is the most common mistake. For high-current applications like air conditioners or electric stoves, using a wire that is too thin will result in overheating and damage.
    • Ignoring Voltage Drop: When running wire over long distances, ignoring voltage drop can cause performance issues or premature failure of electrical components.
    • Not Planning for Future Loads: If you anticipate adding more devices or increasing the electrical load in the future, it's best to use a thicker wire gauge that can handle the extra current.

    A satisfied electrician standing in front of a completed electrical project.

      Conclusion

      The relationship between wire gauge, amperage, and voltage is key to creating safe, reliable electrical systems. Choosing the right wire gauge for your project will ensure your electrical system operates efficiently while avoiding common pitfalls like overheating or voltage drop. By understanding how these three factors interact, you can make well-informed decisions that protect your wiring and electrical components, prevent electrical hazards, and ensure optimal performance in your electrical projects.
